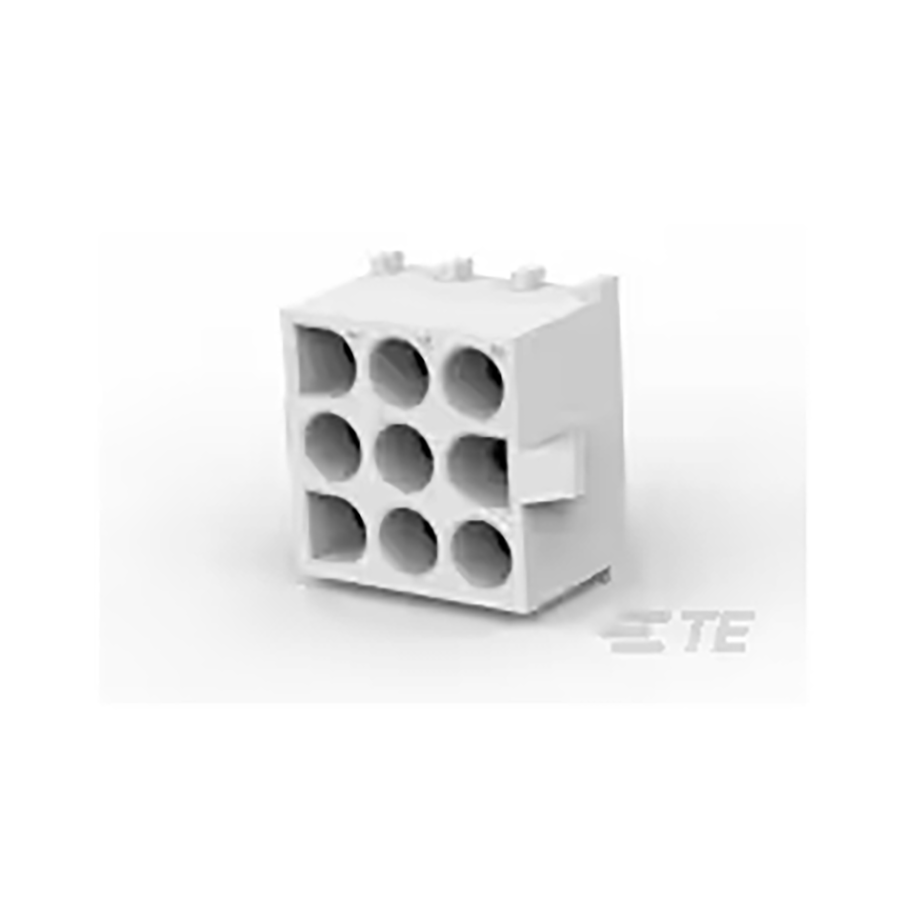

350763-4
Manufacturer:
TE Connectivity
Mfr.Part #:
350763-4
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:9 Pitch:6.35 mm
| Parameter | Value |
|---|---|
| Length | 20.32 mm |
| Width | 20.32 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 13.97 mm |
| Packaging | Bulk |
| Voltage Rating | 600 V |
| Depth | 20.32 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze, Tin |
| Pitch | 6.35 mm |
| Number of Terminals | 9 |
| Current Rating | 19 A |
| Max Voltage Rating (DC) | 600.6 kV |
| Flammability Rating | UL94V-2 |
| Approvals | CSA |
| Number of Circuits | 9 |
| Orientation | Vertical |
| Operating Supply Voltage | 600 V |
| Lifecycle Status | Production (Last Updated: 4 days ago) |
| Color | Natural |
| Gender | Socket (Female) |
| Shielding | Unshielded |
| Number of Contacts | 9 |
| ELV | Compliant |
| Connector Type | Header |
| Number of Positions | 9 |
| Number of Rows | 3 |
| Row Spacing | 6.35 mm |
| Housing Material | Nylon |
| Number of Ports | 1 |
| Fastening Type | Ramp |
| Circuit Application | Power |
| Connector System | Wire-to-Board |
| Contact Style | Socket |
| Max Voltage Rating (AC) | 600 V |
| Contact Current Rating | 12 A |
| Housing Color | Natural |
| PCB Mounting Orientation | Vertical |
| PCB Thickness | 1.57 mm |
| Plating Thickness | 2.54 µm |
| Contact Gender | Female |
| Number of Power Positions | 9 |
| VDE Tested | Yes |
| Schedule B | 8536695050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 4 days ago) |
| Sealable | No |
| Contact Retention | Without |
| Termination Post Length | 3.94 mm |
